XL HD Productivity Appliance™

EthernetLeverage network connectivity with browserbased reporting and configuration. Your data stored securely behind your firewall.

HDMI®Utilize any size TV or monitor as an operator scoreboard. See real-time metrics from anywhere on the plant floor.

USBConnect a barcode scanner for easy operator data input. Scan down and reject reasons. See exactly where to improve.

24V DC Power InPower from your 24V DC power bus or an external power supply (included).

Digital Inputs (6)Wire to one or two sensors (e.g., photocell or proximity) to capture counts and cycles. From this, XL generates 100+ metrics.

OLED and Gesture SensorSee real-time metrics and diagnostics. Swipe left or right to page through screens.

Production State IndicatorGlows green, red, amber, or blue to indicate the state of your line. Features custom LEDs for vibrant colors visible from across your factory.

Relay OutputProvide extra annunciation to remind operators to scan reasons.

XL HD is a small but powerful IIoT edge computing device that captures, stores, analyzes, and reports your manufacturing data - providing convenient access on your network. Download the XL HD data sheet.

Book a live demo

THE SCOREBOARD

Any size fits all.

The XL HD includes an HDMI port so you can connect any size plant-floor scoreboard you want. XL automatically generates beautifully formatted contextual information that is optimized for your operators.

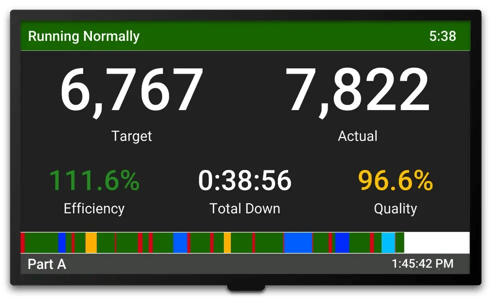

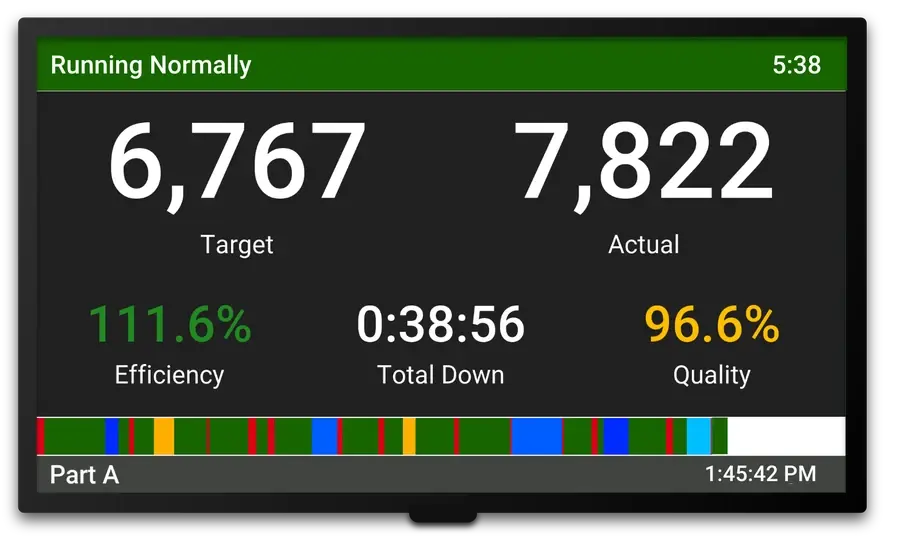

When your process is running, XL shows you the current state of your production line, how long you’ve been in that state, from one to five KPIs (that you can choose), a live chronogram that shows you exactly what happened during your shift, the part you are currently running, and the time.

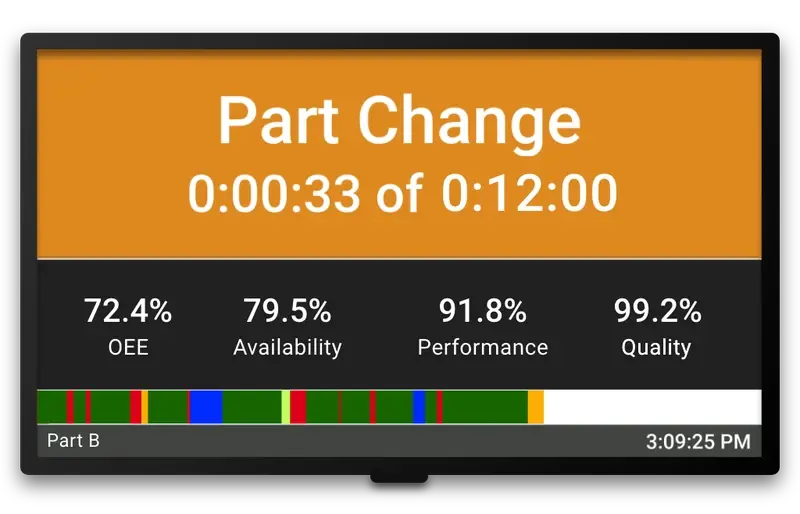

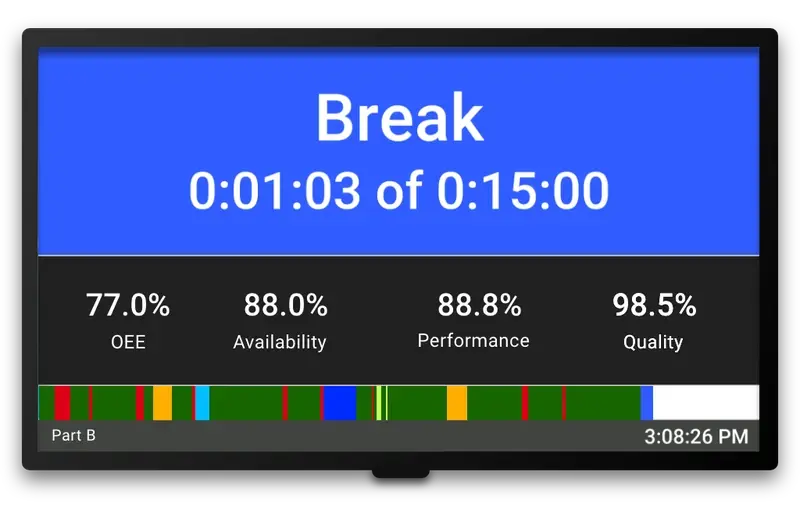

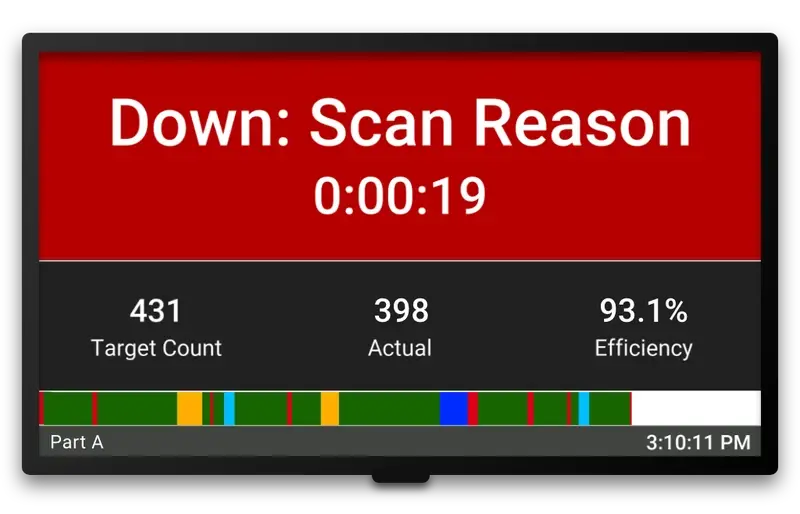

When your process is not running, the focus shifts to helping you return to production. XL HD uses sensors on the line to detect the state of your process. It then displays any anomalies it detects during the shift in real time. It notifies your operators of planned events (i.e., Changeovers or Breaks) and unplanned events (i.e., Running Slowly or Down) with clear visuals on the scoreboard that immediately call attention to the exact state of the process.

THE PRICE: $4,290

A one-time cost, with no surprises.

No hidden fees
No recurring fees
No maintenance fees
No support fees
No custom software

One-time cost
Unlimited users
Free software updates
Free technical support
3-year warranty

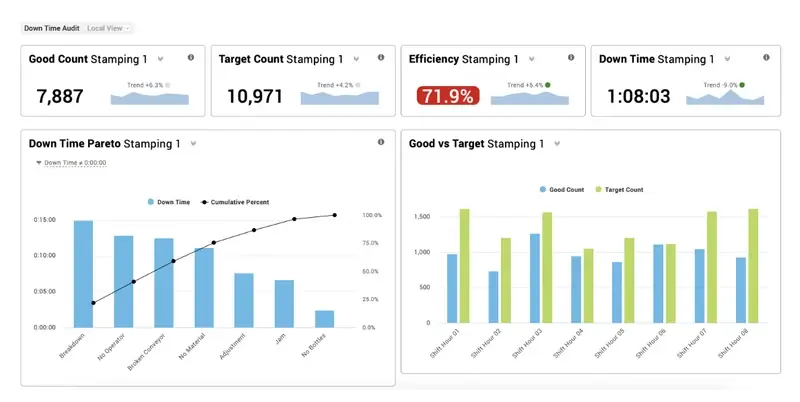

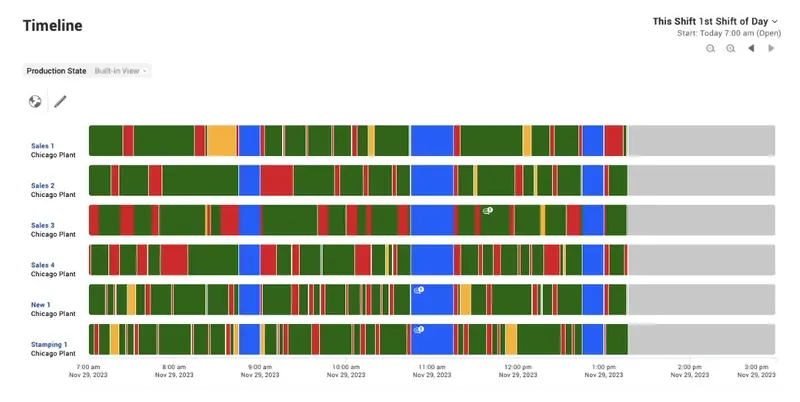

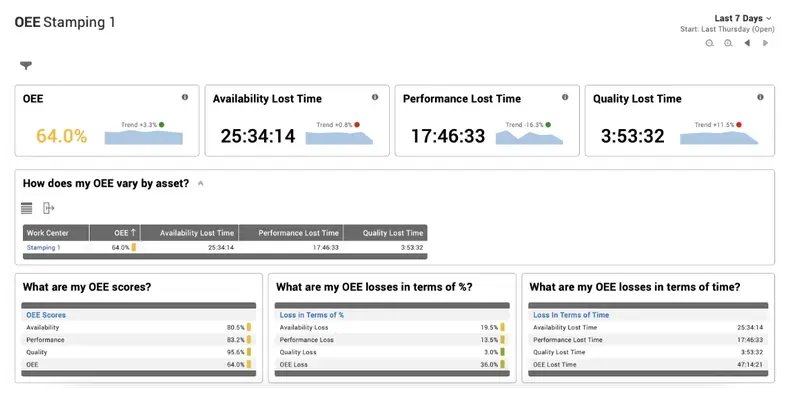

XL provides instant access to 60+ built-in reports and makes it easy to build an infinite variety of custom reports. Connect a barcode scanner to make it easy for operators to scan reasons. The XL HD interfaces with standard 2D USB barcode scanners, and Vorne also offers barcode kits. The XL HD is $4,290 (USA and Canada). Volume discounts are available. For a quote that most accurately represents the cost to deploy XL outside of the US/Canada, please contact a local Vorne XL partner.

Try XL Free 90 days

THE SPECS

Dive into the details of the XL HD.

Communication Ports(1) IEEE 802.3, 10/100 Mbps, Auto-MDIX, RJ-45 Ethernet

(1) 2.0 USB-A Host, 500 mA current @ 5 VDC (2.5W)

(1) HDMI Out

Power24V DC, 1A

Environmental0° to 50°C ambient

5% to 95% relative humidity (non-condensing)

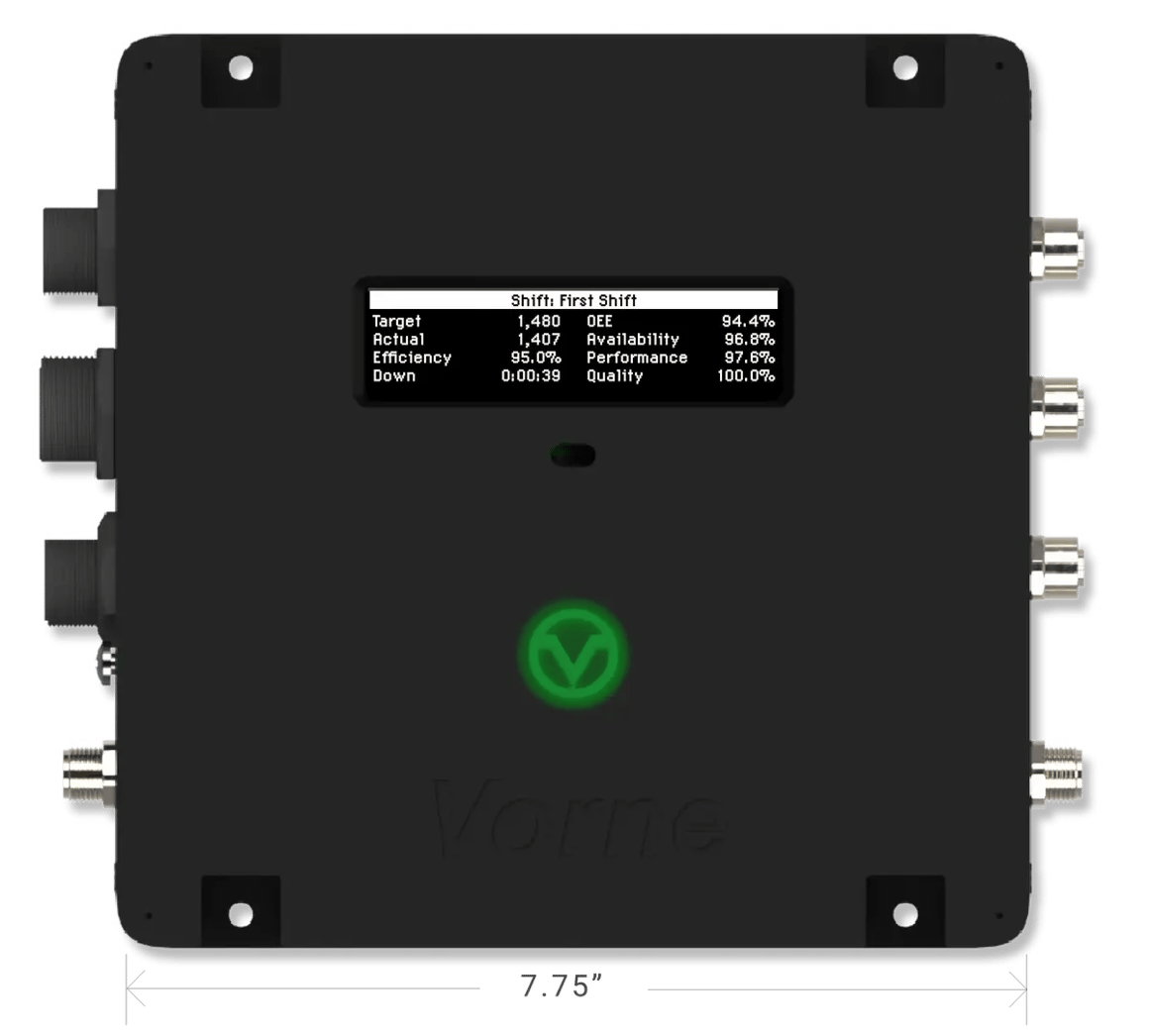

Dimension and Weight7.75 x 7.75 x 2.00 in3 | 3 lbs 20 x 20 x 5 cm3 | 1.4 kg

Processing Core32-bit, 1GHz ARM Processor

4GB Flash Memory

512 MB RAM Digital

Digital Inputs and Outputs(6) 5 to 24V DC, Sink or Source

(1) SPDT, 30V DC at 1A, resistive load only relay output

Every Vorne XL sold in North America includes free technical support and a 3-year limited warranty. To review the terms of our warranty policy please click here.

Talk with an XL Expert

THE DEVICE

Same great web interface, new small footprint.

THE SCOREBOARD

Any size fits all.

THE PRICE: $4,290

A one-time cost, with no surprises.

THE COLLECTION

Same platform, different scoreboards.

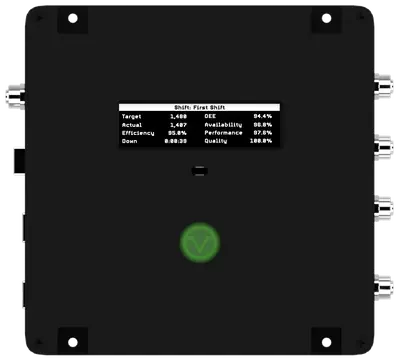

XL HD+

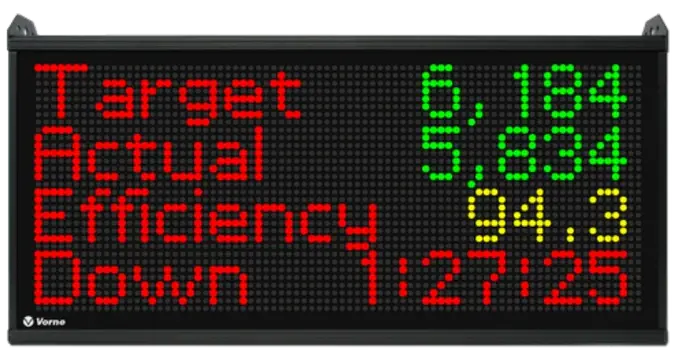

XL810-1
